SATA adam X Digital Gauge for SATAjet X Spray Gun (1201996)
SATA adam X Digital Gauge for SATAjet X Spray Gun (1201996)
Couldn't load pickup availability
SATA adam X Digital Gauge for SATAjet X Spray Gun (1201996)
A digital world for jet X.
A digital unit with special capabilities. Perfect for you.
The jet X is the most advanced paint spray gun from SATA. With its innovative nozzle concept, it achieves a new outstanding surface quality for basecoats and clearcoats. It helps you achieve better finishes more easily.
The digital units of the adam X series allow you to standardise and reproduce these results at a high level.
With their diverse functions, they support you in making processes transparent and avoiding errors.
|
|
The statisticsThe adam X pro keeps precise records of operating hours, painting time and the number of trigger pulls, i.e. how often the trigger was actuated. The digital dashboardThe best database only makes sense if it is also analysed. To make this easier, the adam X pro can be connected to a personal dashboard on a PC or smartphone. This is a digital control centre in which the most important parameters of the painting process can be stored and analysed. The data is transmitted via a QR code that is shown on the display of the adam X pro.
|

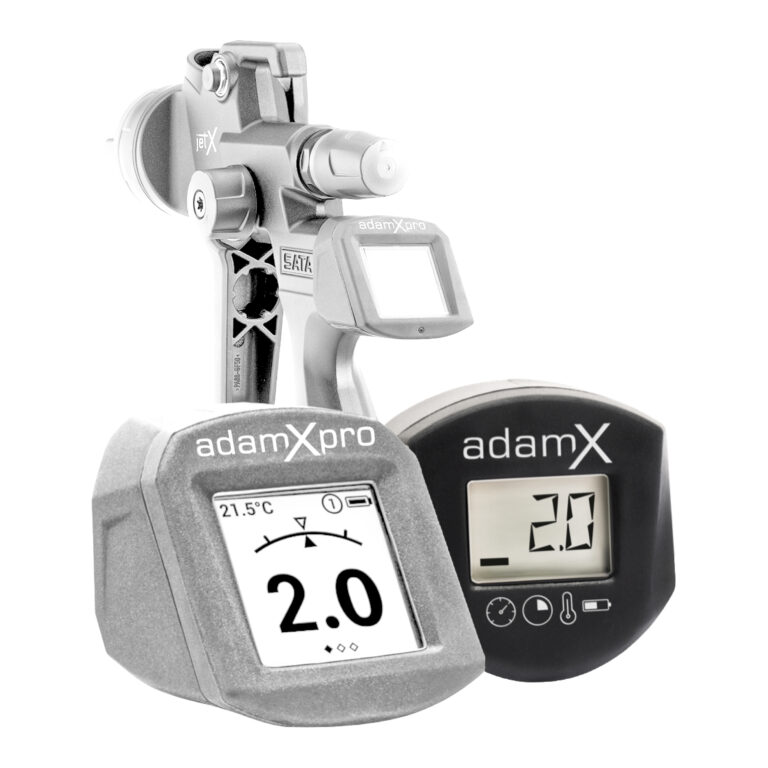

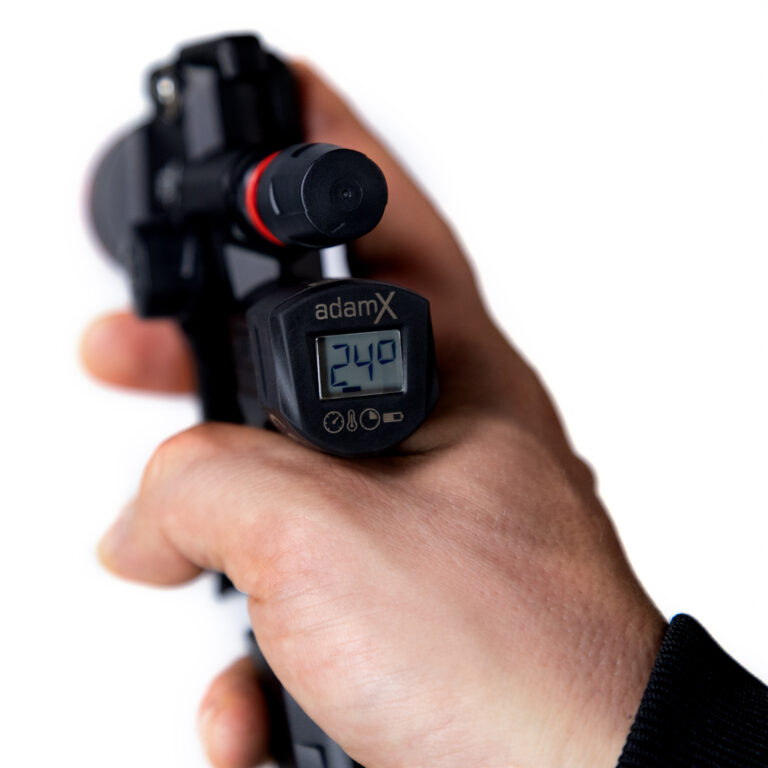

Get to know the adam X and adam X pro
The SATA adam X pro offers an unprecedented range of digital functions. This helps the professional in the paint booth analyse and control the painting process – with an unprecedented level of information and accuracy.
Features
The functions of the adam X pro
The menu structure is orientated towards the needs of professionals who work with the jet X on a daily basis. It is divided into two levels: the first level shows the main screen – it is always the first screen to appear after activating the adam X pro. Also on the main level: the statistics and the QR generator for transmitting data to the digital dashboard. The settings are found on the second level.
The main level
The main screen shows the most important parameters in a clearly organised display:
- The current actual pressure
- The previously set target pressure
- Deviations between actual and target pressure in a graphical visualisation
- An alarm symbol if the actual and target pressure differ by more than 0.2 bar (3 psi)
- The dynamic pressure that was applied when the trigger was last actuated
- Also: The ambient temperature and battery status
During painting, the display changes to a simplified, clearer display.
The settings level
Target dynamic pressure
What specifications does the paint manufacturer provide? What are your personal preferences? The target value for the dynamic inlet pressure is set here. This value is also displayed on the main screen, shown in comparison with the actual pressure in a graphical visualisation. Deviations of more than 0.2 bar trigger an optical alarm.
Pressure and temperature units
The pressure and ambient temperature displays can be easily switched: from bar to psi and from °C to °F.
Multi-gun mode
The adam X pro can be used with two paint spray guns. When multi-gun mode is activated, a menu appears when the compressed air hose is connected in which the paint spray gun currently in use can be selected.
Other settings
Other functions can also be found at the settings level: calibration of normal pressure, information on hardware and software versions and resetting the statistics.
 |
Worthwhile in every respect. Especially for loyal customers.The adam X pro rewards your loyalty! If you take part in the SATA Loyalty Program coins & more, you can collect SATA coins with the new adam X pro and redeem them for attractive rewards in the Loyalty Shop. Take part and benefit! |
|
The most digital SATA of all time |
 |
 |
| Mounting on the QAC without docking station | Yes | Yes |
| Inlet pressure display | Yes | Yes |
| Conversion bar/psi | Yes | Yes |
| Target pressure input | Yes | Yes |
| Alarm function for when system exceeds or falls below the target pressure | Yes | No |
| Operating time indicator | Yes | Yes |
| Ambient temperature indicator | Yes | Yes |
| Conversion °C/°F | Yes | Yes |
| Battery status indicator | Yes | Yes |
| Double-tap operation | Yes | Yes |
| Tilt operation | Yes | No |
| Data on operating hours, painting time and number of trigger pulls | Yes | No |
| Transfer of important parameters to the digital dashboard | Yes | No |
